Category: Compressed Air and Gas Filters
Product Code: International H-Series
Typical Applications
|
Coalescing (Oil Removal) |
Adsorber (Vapor Removal) |
Interceptor (Particulate Removal) |
|
Air dryer prefilter Paint spray booths Breathing air Tool protection Air valve protection Air cylinder protection Compressed air system protection
|
Odor removal Breathing air Food packaging equipment High purity laboratory gases Hydrocarbon vapor removal
|
Desiccant dryer after filter Prefilter for coalesce Systems with high concentrations of solid contaminant Particulate protection for non-lubricated systems
|
Choose your media type
|
|
C: Micro-glass coalescer Max. temp. 175°F. |
|
|
Q: Micro-glass coalescer with built-in pleated prefilter Max. temp. 175°F. |
|
|
7CVP: Micro-glass pleated coalescer Max. temp. 175°F. |
|
|
D: High temperature micro-glass coalescer Max. temp. 450° F |
|
|
100WS: Rolled Stainless Steel Mesh (304 SS) Element flows in to out. Max. temp. 175°F. |
|
|
3P: Pleated Cellulose Element flows out to in. Max. temp. 175°F. |
|
|
A: Activated Carbon Element flows out to in. Max. temp. 175°F. |
.jpg)

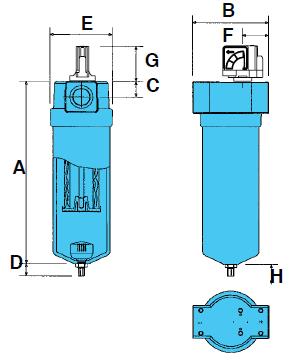

1/4" to 1" Housings
Specifications
Max. Pressure: 500 PSIG (34 bar)
Safety Factor: Max. operating to burst 4:1
Max. Temp.: 175oF (79oC) with option to 450oF (232oC)
Seals: Nitrile Std./Fluorocarbon optional
Materials: Aluminum - 380 Die cast heads; 6061 Drawn bowls
Coatings: Chromated heads and bowls; Powder painted exterior
Design: In-line threaded bowl to head

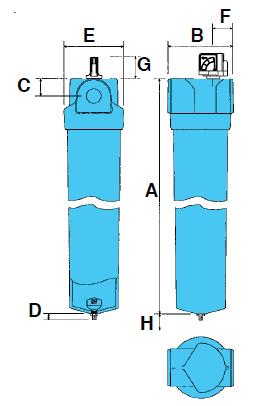

1 1/4" to 3" Housings
Specifications
Max. Pressure: 500 PSIG (34 bar)
Safety Factor: Max. operating to burst 4:1
Max. Temp.: 175oF (79oC) with option to 450oF (232oC)
Seals: Nitrile Std./Fluorocarbon optional
Materials: Aluminum - 356 Sand cast heads; 6061 Drawn bowls
Coatings: Chromated heads and bowls; Powder painted exterior
Design: In-line threaded bowl to head
